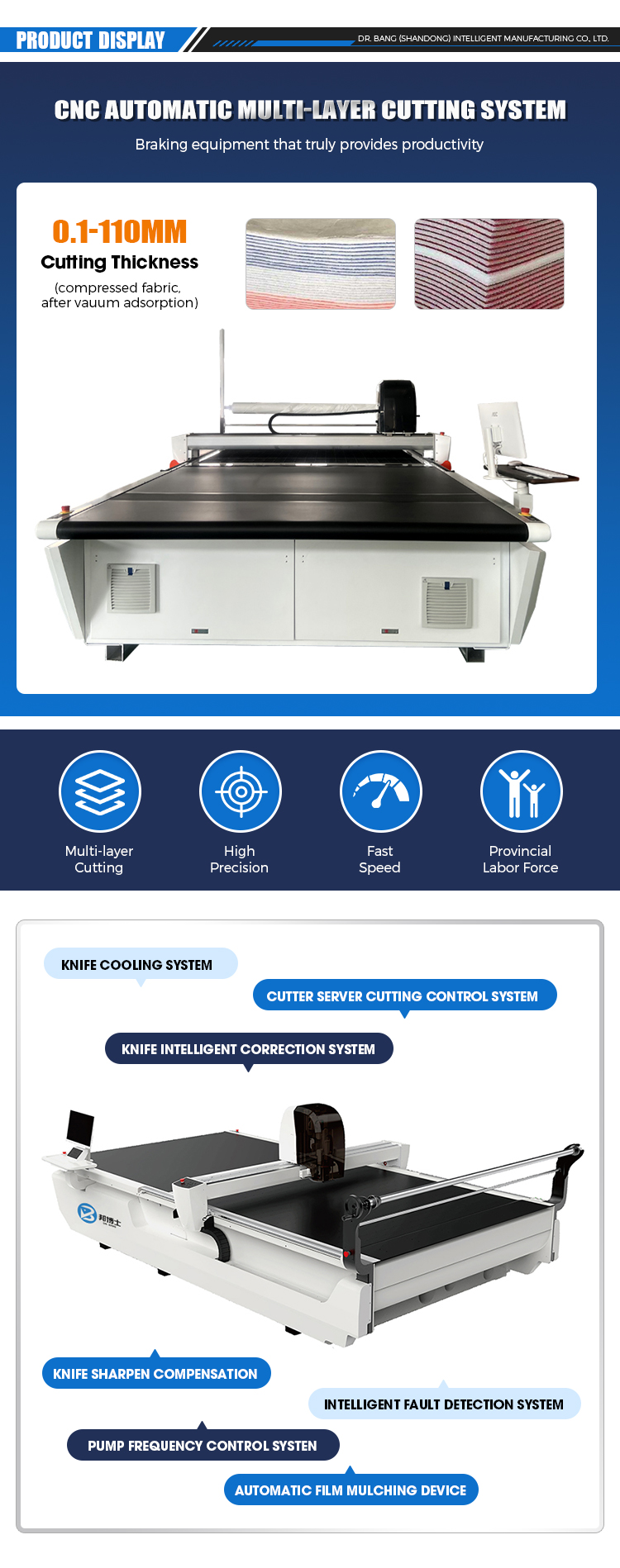

This machine is a cutting flatbed specifically designed for fabrics,fully automatic computer control, one click design and fabric layout, cutting thickness 0.1cm-11cm,suitable for multi-layer cutting.
-- Maximum cutting speed 80m/min,cutting accuracy within 0.1mm,greatly exceeding the efficiency of manual labor.

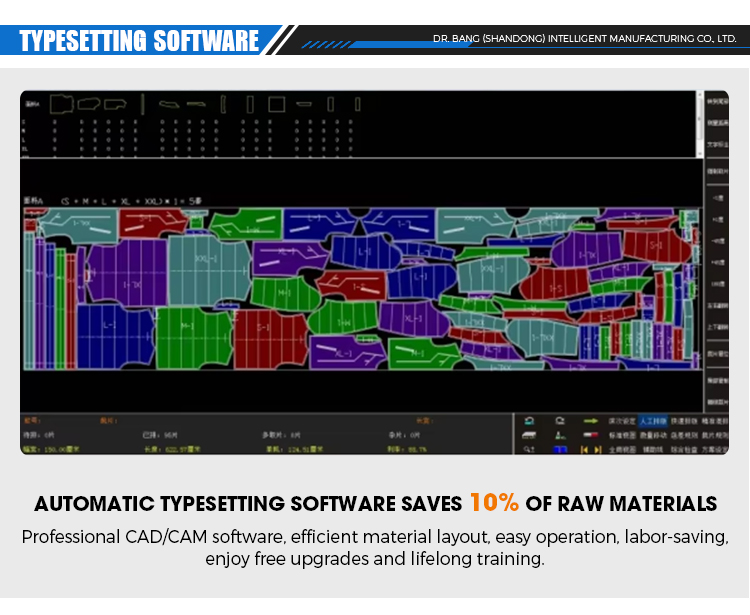

--With intelligent algorithm fabric layout software, it can achieve a material utilization rate of over 98%.
--With automatic material receiving and feeding, saving 5-6 labor costs,the cutting process is smokeless and odorless.
Applicable industries:
Textiles and apparel, bags and leather goods, automotive interiors, upholstered sofas, outdoor sports, baby products, advertising and printing, composite fabrics, marine, aviation, medical and healthcare industries, etc.
Model | BBS-GSD1725 /BBS-GSD2030/BBS-GSD2330/BBS-GSD2630(Accept customization) | ||
Working Range | 1700*2500MM / 2000*3000MM/2300*3000MM/2600*3000MM | Total Power | 18kw |
Cutting length | No limitation with automatic fabric feeding system | Rated Voltage | 220/380V±10% |
Cutting Thickness | 0.1mm--110mm (compressed fabric, after vauum adsorption) | Interface | Ethernet port |
Cutting Speed | 0-70m/min | Control Panel |
LCD touch screen |
Cutting style | Straight Knife Continous Up-down Cutting | ||
Cutting Material | Nonwovens, Linen, canvas, Chenille, woven fabric, sofa cover, UV fabric, PVC curtain, fur, faux fur, | ||
Production Capacity | 650 pairs of pants per hour, 500 pieces of clothing per hour, 6000 pieces of medical clothing per hour, 500 sets of furniture sofas per hour, 600 sets of car interiors per hour, 8000 sets of plush toys per hour | ||
Control System | The self-developed system is well compatible with any version of CAD software | ||
Other functions | Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed | ||

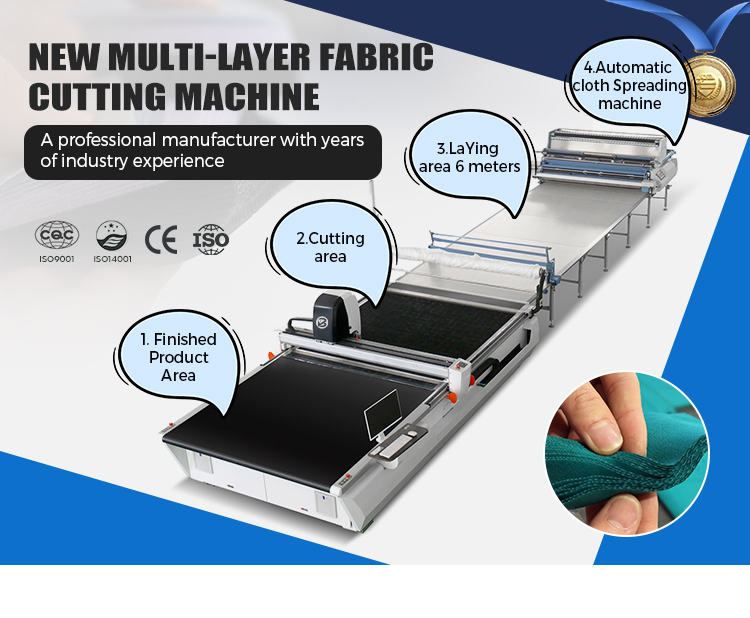

Main components | 1. Automatic multi-layer cutting bed 2. automatic cloth spreading machine 3. air floatation table | ||
DR. BANG MULTI LAYER FABRIC CUTTING MACHINE This machine is a cutting flatbed specifically designed for fabrics,fully automatic computer control, one click design and fabric layout, cutting thickness 0.1cm-11cm,suitable for multi-layer cutting. -- Maximum cutting speed 80m/min.cutting accuracy within O.1mm,greatly exceeding the efficiency of manual labor. --With intelligent algorithm fabric layout software, it can achieve a material utilization rate of over 98%. --With automatic material receiving and feeding, saving 5-6 labor costs,the cutting process is smokeless and odorless. |

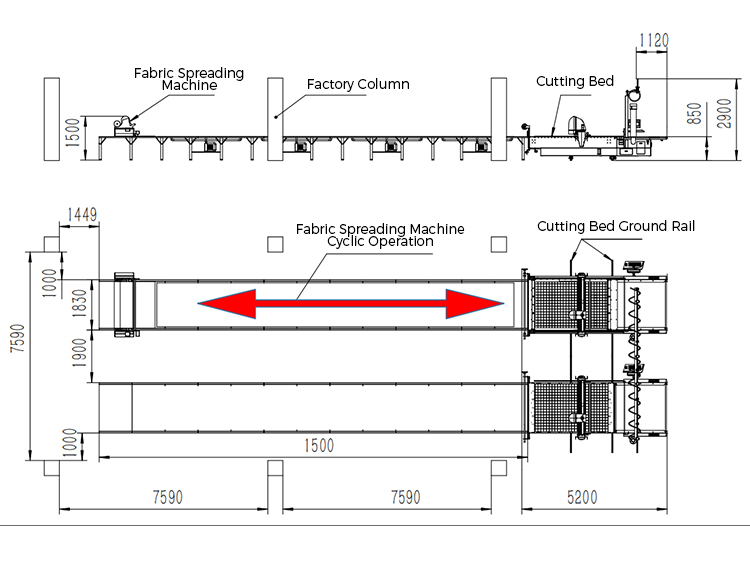

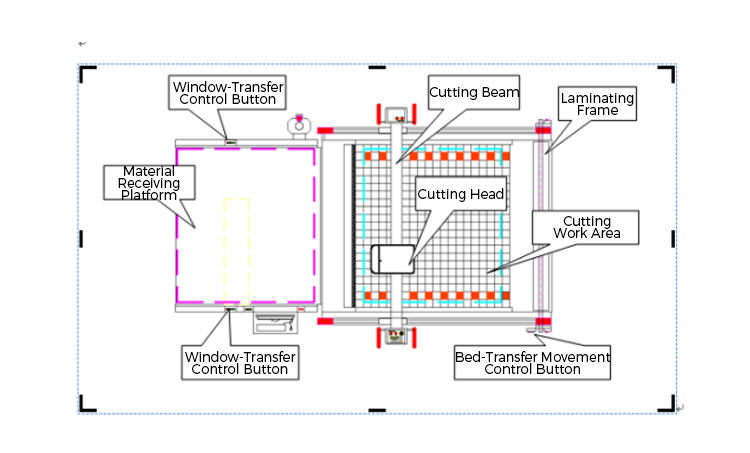

The system composition is described as follows: The system is configured with multiple cloth spreading tables, with ground rails laid on the floor and electric rails erected on the upper part. Through the bed-transfer operation, the multi-layer cutting bed can move and position between Workstation A and Workstation B. When the multi-layer cutting bed is fixed at one of the workstations for cutting work, the remaining cloth spreading tables can be used for cloth spreading operations, which greatly improves the equipment utilization rate of the multi-layer cutting bed. |
System Composition: Cutting Machine + Automatic Cloth Spreading Machine Configuration Description (Scheme): One automatic cutting machine is configured, used with two cloth spreading tables (one 12 meters long), and one automatic cloth spreading machine. As shown in the reference diagram: |
