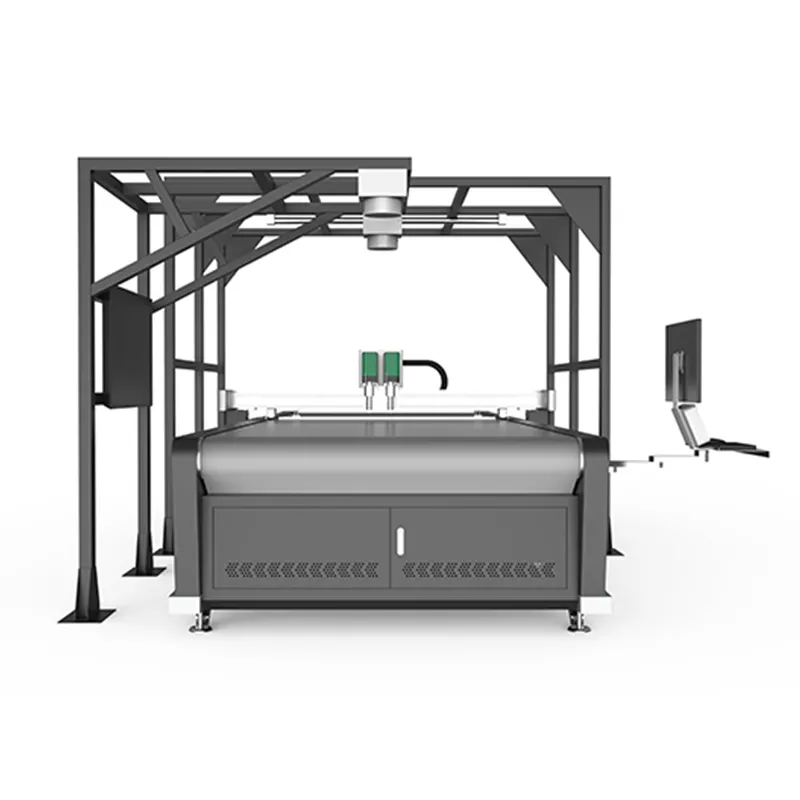

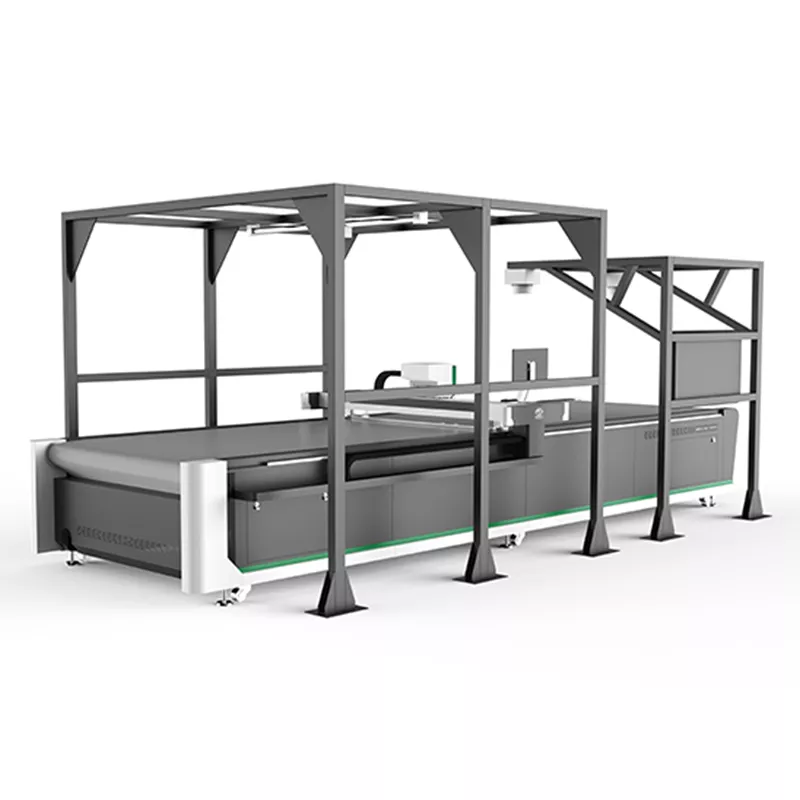

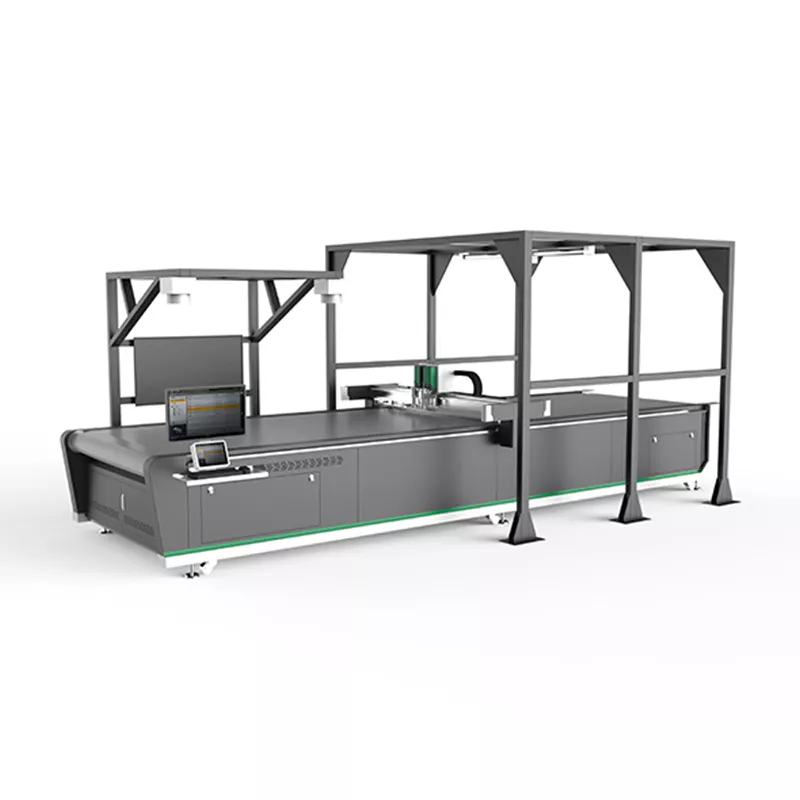

Gasket Industry CNC Cutting Machine
Dr.Bang's CNC Gasket Cutter is ideal for manufacturing and machining gasket materials as it provides proper cutting and milling solutions. From a single piece to mass production, always maintain the same precision, no need for mold, cut immediately, without wasting time and high cost to prepare the mold. Dr. Bang has independently developed a sealing industry cutting system for single-layer and multi-layer material cutting. Using an advanced control system and stable bed material, cutting is not only fast, and high precision, but also more stable.
Description of product advantages
Various tool combinations: You can switch to the most suitable tool for cutting according to the material being cut, improving accuracy and efficiency.
Vacuum adsorption platform: avoid displacement deviation when cutting soft and light materials, and can adsorb the material to the table without moving.
Touch screen panel: Color touch control panel, more intuitive operation interface, connect to the computer to directly accept data, set cutting depth and cutter head parameters, have a powerful database, support one-key retrieval.
One-piece adjustable aluminum box sealing platform: It can withstand a lot of pressure without deformation, and adjust the height of the table without deviation, which greatly improves the operation accuracy and prolongs the service life of the platform.
Precision rack guide rail: imported rack and guide rail, improve work efficiency and machine operation accuracy, avoid cutting errors, and prolong the overall service life of the machine.
Silent towline: scientific and strict wiring, precise alignment of each towline, keep the wiring safe, will not generate static electricity, will not bend the line, and prolong the life of the line.
Precision welding: Precision welding of the bed will significantly increase the load-bearing capacity, increase the self-weight of the bed, maintain the stability of the bed, and increase the precision and stability of cutting, especially for fast cutting.
Scientific wiring electrical control cabinet: The wiring is scientific and reasonable, and each line has a corresponding mark, which is convenient for the maintenance and maintenance of the machine. All electrical components meet the standards of Schneider and top brands.
Milling machine bed: The precision and stability of the machine bed flattened by the milling machine will be greatly improved, which will greatly help the cutting accuracy, reduce errors, improve work efficiency, and prolong machine life.
Advantages of Dr.Bang's CNC Cutting Machine
1. Flexible cutting: Just send the processing data (PLT, DXF, AI format) to the cutting system, and the graphics can be modified arbitrarily. 2. Material saving: The automatic typesetting software does not need manual typesetting, and automatically fills the material graphics, saving 20% of material costs. 3. Meet different material cutting: It can be cut according to different widths and thicknesses of materials, and the cutting accuracy can reach ±0.1mm. 4. Environmentally friendly cutting method: Dr. Bang cutting machine adopts high-frequency oscillating knife cutting technology. Not suitable for heat source cutting, there is no smoke and dust on the processing site, and the cutting speed is 3-4 times that of the laser. Greener processing. 5. There are many types of knives: customers can configure different processing knives according to the processing materials - round knives, air knives, punch knives, vibrating knives, scribers, pressure rollers, and other cutter heads, which can be flexibly configured to cut all flexible materials. 6. Improve cutting efficiency and prolong service life: Dr. Bang's cutting machine has a stable body, which can meet the requirements of high-speed cutting, up to 2000mm/s; the body milling machine can improve the cutting accuracy after milling, reduce the friction of precision parts, and improve efficiency at the same time Extend the overall life of the machine.
Parameter of Gasket Industry CNC Cutting Machine






Effective working area




Multi-head optional

Double head optional efficiency doubled,   double gantry optional, double head mutual shift optional, length can be   customized

Multi-function tool

Vibrating knife full cutting, high   power active round knife, semi-cutting cutting, full cutting cutting, camera   positioning cutting, edge finding cutting, acrylic milling cutter, cursor   positioning, line marking, indentation knife, V-groove knife, etc.

safety devices

Infrared sensing, safe and   reliable

Cutting speed


Cutting thickness

≤50mm Other thicknesses can be   customized according to the material

Applicable materials

Various KT boards, Chevron boards,   honeycomb boards, car stickers, adhesives, photo frame paper, gray board   paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, etc.

Material fixing method

Vacuum partition adsorption

Transmission port

Network port

Transmission system

Servo motor, linear linear guide, timing   belt, lead screw

rated power


Rated voltage


Control System

Chinese and English LCD touch screen

Operating environment

Temperature 0-40°C Humidity   20%-80%RH


Automatic nesting software, camera   positioning, large format camera system

Support file format


Cutting application industry
Dr.Bang's CNC Gasket Cutting Machine application industry Gaskets are an industry with a wide range of designs and many types of materials. Common materials include graphite gaskets, asbestos gaskets, rubber gaskets, latex gaskets, cork gaskets, etc. The cutting of gaskets usually uses a punch, before cutting. It is necessary to open the mold, and then perform extrusion cutting. This cutting method is easy to cause the problem of inconsistent upper and lower accuracy of the material, which will cause a certain image for the sealing of the material. In addition, punch cutting will generate the cost of the mold pair. If it is a small batch In the production of gaskets, the cost of molds is often higher than the cost of materials, so a vibrating knife cutting machine with high precision and data import cutting is required. If there are other industries, all non-metallic materials are cut by Dr.Bang's CNC cutting machines, as follows: 1. Packaging industry: corrugated cardboard, honeycomb cardboard, kraft paper and other packaging boxes (cutting, creasing, dotted cutting, scribing marks) 2. Advertising industry: stickers, labels, PP paper, flags, inkjet cloth, light boxes, KT boards 3. Automotive interior industry: car interior dimensions of various models and materials such as leather and artificial leather (with a multi-model database) 4. Composite materials: EVA, EPE, PVC, soft glass, fiber products (glass fiber, carbon fiber, etc.), thermal insulation cotton, sound insulation board, rubber, etc. 5. Textile industry: clothing fabrics of various materials, matching materials for suits, home textiles (curtains, sofas, tablecloths, etc.) 6. Leather industry: genuine leather materials, artificial leather materials, composite leather materials, etc. (cutting, marking) 7. Gasket industry: gaskets of various materials (asbestos, non-asbestos, rubber), PTFE (special-shaped, small-area cutting) 8. Carpet industry: various types of carpets, silk circle carpets, diatom mud carpets, etc., carpets for various environments (standard or special-shaped cutting)
Dr.BANG Services
CNC packaging cutting machine packaging details: 1. Outer packing: Standard sea export plywood box. 2. Inner packing: stretchable film and plastic film to prevent moisture. Can meet special requirements Transportation: There are many options for transportation, but the default is the sea. If you have special requirements, please explain in advance. Price, according to your destination information, transaction method, and transportation method, we will provide you with a specific quotation.
After-sale service
1) The CNC packaging and cutting machine is guaranteed for one year free of charge (except for wearing parts), and the main components are inspected and maintained free of charge. 2) Provide lifetime free technology upgrade service 3) Wearable parts such as blades and bench covers are always available at cost when needed. 4) Free operation training in our factory. If there is not enough time, we will send detailed training videos. 5) 24-hour online service, providing free technical support in different languages. 6) On-site technical support is available when needed.
Why choose Dr.Bang CNC cutting machine
1. The quality is comparable to the most advanced quality of peers; 2. The price is so favorable that peers dare not take orders; 3. All products have passed the European CE certification; 4. All CNC cutting machine accessories are selected from industry-leading brands; 5. All technicians have to undergo several months of rigorous training before they can take up their posts; 6. After-sales service: provide 24-hour online solutions.
